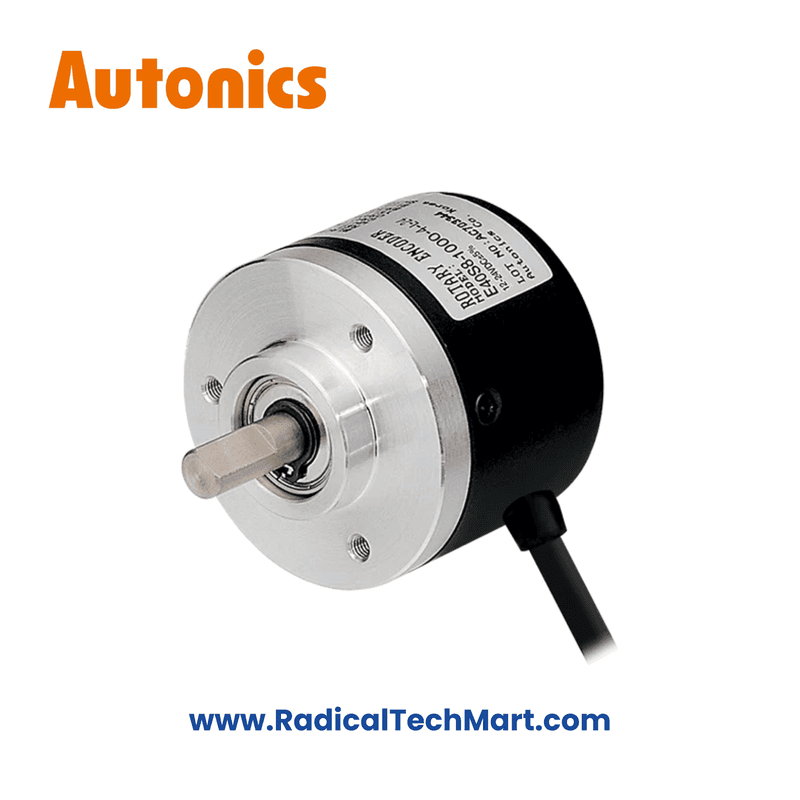

E40S6-1000-6-L-5 Autonics Encoder
Non-returnable
₹8,945.00
Product Details
| Product | Description |
|---|---|
| Brand | Autonics |
| Model No. | E40S6-1000-6-L-5 |
| Shaft outer diameter | Ø6mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 40gf.cm(max. 0.00392N.m) |
| Resolution | 1000P/R |
| Output phase | A, B, Z |
| Control output | Line Driver |
| Power supply | 5VDC ±5%(ripple P-P: max. 5%) |
| Connection type | Radial cable type |
| Protection structure | IP50 |
| Approval | CE |
| Environment Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Environment Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Ø6mm coupling standard, Ø8mm coupling(sold separately) |
| Weight | Approx. 120g |
